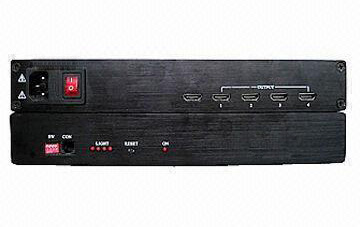

01. 1 DVI
input and 4 outputs;
02. Can be as distribution or split screen device;
03. Input signal source includes HDMI interface and DVI
protocol;
04. PMC as module on video processor;
05. Used as independent device and also module;
06. Distribution device: Maximum input resolution: 1280 x
1024 x 60Hz (VESA) pixels;
08. Split screen device: Maximum input resolution: 1024 x
768 x 60Hz (VESA) pixels;
10. Can control by toggle switch or RS232 communication;
11. Toggle switch can implement horizon 2 and 4 sections;
12. 4 split screen modes;
13. Used module of AVDSP implement many split screen modes
control by I2C;
14. Control modes priority I2C, RS232 and then toggle
switch. |
|
|
