  Kianco ETFE Fluoroplastic Insulation Wire Product
  UL 10109/10086 ETFE (Teflon) Insulation Wire



Code: KMEWR_MEL10109/10086

Name: UL 10109/10086 ETFE (Teflon) Insulation Wire



Description:
Properties:
- 10109 Wire Rated voltage: 300 V.
- 10086 Wire Rated voltage: 600 V.
- Rated Temperature: 150°C or 200°C
- Lower Temperature: -60°C

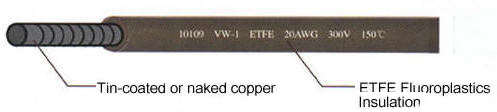

- Conductor: single or multiple twists made of 36~10AWG (0.013~5.3mm2) tin-coated copper or naked copper.
- Insulation: ETFE Teflon, with optional color schemes such as white, black, red, blue, grey, yellow, green, brown, orange etc.
- Excellent corrosion-resistance nature; insoluble to most organic solvent; oil-proof; resistant to strong acid, alkaline and oxidant.
- Excellent insulation with high voltage resistant, stable and generating low losses under high frequency; non-moisture absorbent; good insulating resistance.
- Excellent non-flammable and non-aging nature; high mechanical properties.
- 10109 Wire Testing Voltage 2200 V, Spark Test 4000 V
- 10086 Wire Testing Voltage 2500 V, Spark Test 5000 V
- Short lines ≧ 10m to deliver is permitted, but quantity must ≦ 10% of total delivery quantity
- This product has obtained approval from UL and CUL...
Usages:
- In electronic industry, used as cable for high frequency transformer or induction coil.
- In electrical appliances industry, it can be used for low temperature resistant wire or high temperature heating coil in air conditioners, micro-wave oven, computerized rice cookers, electronic thermos, electric heater, electric frying pan, lightings as connections.
Packing Information
Single Unit:
Dimension: AWG10 - AWG36
Packaging: 152M - 1220M
Export Carton:
Pcs Per Carton: 8 Reels
Carton Per Dimension: 46 X 23 X 25 CM




Specifications:
AWG Conductor Spec. Style 10109 Wire Style 10086 Wire 20°C Pack.
Conductor Ft/coil
Max Resist. (m/coil)
Section Area mm2 Cores No./Dia No/mm Overall Dia mm±5% Average Insulation Thickness Min. Insulation Thickness Overall Dia mm±5% Average Insulation Thickness Min. Insulation Thickness Ω/km
mm  mm mm  mm
36 0.013 1/0.13 0.45 ≧0.51 ≧0.12 0.67 ≧0.26 ≧0.23 1369 4000 ft. (1220 m)
34 0.02 1/0.16 0.48 0.7 861
32 0.033 1/0.21 0.52 0.74 602
30 0.05 1/0.26 0.58 0.8 387
28 0.08 1/0.32 0.64 0.86 244
26 0.13 1/0.41 0.77 0.99 153 2000 ft (6100 m)
7/0.15 0.79 1.01
24 0.22 1/0.51 0.85 1.07 95.8
7/0.20 0.93 1.15
22 0.33 1/0.65 1 1.22 60.7
19/0.15 1.1 1.32
21 0.42 1/0.72 1.06 1.28 47.6
20 0.52 1/0.81 1.16 1.38 38.1
19/0.19 1.3 1.52
19 0.65 1/0.91 1.28 1.5 30.1
18 0.82 1/1.02 1.38 1.6 23.9 1000 ft (305 m)
19/0.235 1.56 1.78
17 1.04 1/1.15 1.58 ≧0.20 ≧0.17 1.7 18.9
16 1.31 1/1.30 1.73 1.85 15
19/0.30 1.96 2.08
15 1.65 1/1.48 1.92 2.04 11.9
14 2.1 19/0.375 2.35 2.47 9.42
12 3.31 19/0.48 2.97 ≧0.25 ≧0.22 3.23 ≧0.38 ≧0.33 5.88 500 ft (152.5 m)
11 4.2 37/0.375 3.25 3.51 4.66
10 5.3 37/0.43 3.6 3.86 3.69
