  Kianco FEP Fluoroplastic Insulation Wire Product
  UL 1516/1517 ETFE (Teflon) Insulation Wire



Code: KMEWR-MEL-1516/1517

Name: UL 1516/1517 ETFE (Teflon) Insulation Wire



Description:
Properties:
- Rated Temperature: 105°C
- Lowest Temperature: -60°C

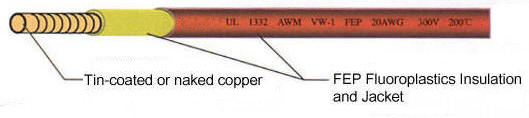

- Conductor: single or multiple twists made of 36~20AWG (0.013~0.52mm2) tin-coated copper or naked copper.
- Insulation: ETFE Teflon, with optional color schemes such as white, black, red, blue, grey, yellow, green, brown, orange etc.
- Excellent corrosion-resistance nature; insoluble to most organic solvent; oil-proof; resistant to strong acid, alkaline and oxidant.
- Excellent insulation with high voltage resistant, stable and generating low losses under high frequency; non-moisture absorbent; good insulating resistance.
- Excellent non-flammable and non-aging nature, good mechanical properties.
- 1516 Wire Spark Test 2000 V
- 1517 Wire Spark Test 2500 V
- Short lines ≧ 20m to deliver is permitted, but quantity must ≦ 10% of total delivery quantity
- Obtained approval from UL and CUL.
  Application:
- In electronic industry, used as cable for high frequency transformer or induction coil.
- In electrical appliances industry, it can be used for low temperature resistant wire or high temperature heating coil in air conditioners, micro-wave oven, computerized rice cookers, electronic thermos, electric heater, electric frying pan, lightings as connections.
  Packing Information
Single Unit:
Dimension: AWG20 - AWG36
Packaging: 1525M - 1830M
Export Carton:
Pcs Per Carton: 8 Reels
Carton Per Dimension: 46 X 23 X 25 CM




Specifications:
AWG Conductor Spec. Style 1516 Wire Style 1517 Wire 20 °C Pack.
Conductor Max Resist. Ft/coil
Section Area mm2 Cores Overall Dia. Average Insulation Thickness Min. Insulation Thickness Overall Dia. Average Insulation Thickness Min. Insulation Thickness Ω/km  (m/coil)
No./Dia. mm mm  mm mm mm  mm
No/mm ± 5%     ± 5%
36 0.013 1/0.13 0.35 ≧0.10 ≧0.076 0.46 ≧0.15 ≧0.125 1369 6000 (1830)
34 0.02 1/0.16 0.38 0.49 861
32 0.033 1/0.21 0.43 0.54 602
30 0.05 1/0.26 0.48 0.59 387
29 0.065 1/0.29 0.51 0.62 303
28 0.08 1/0.32 0.54 0.65 244
27 0.1 1/0.36 0.58 0.69 192
26 0.13 1/0.41 0.63 0.74 153
7/0.15 0.7 0.81
25 0.16 1/0.45 0.67 0.78 121
24 0.22 1/0.51 0.74 0.85 95.8 5000(1525)
7/0.20 0.85 0.96
23 0.26 1/0.58 0.81 0.92 75.8
22 0.33 1/0.65 0.87 0.98 60.7
19/0.15 1 1.11
21 0.42 1/0.72 0.95 1.06 47.6
20 0.52 1/0.81 1.05 1.16 38.1
19/0.19 0.21 1.32
