  Kianco FEP Fluoroplastics Insulated  Wire Product
  FEP Fluoroplastics Insulated Wire



Code: KMEWR-VDE-FEP-102
Name: FEP Fluoroplastics Insulated Wire



Description:

Properties:
- Rated Voltage: 300/500V.
- Rated Temperature: 180℃.
- lowest temperature: -80℃.

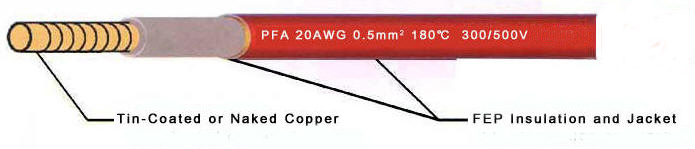

- Conductor: single or multiple twists made of 30~10AWG (0.05~5.3mm2) tin-coated copper or naked copper.
- Insulation: 2 Layer FEP Fluoroplastics, with optional color schemes such as white, black, red, blue, grey, yellow, green, brown, orange etc.
- Excellent corrosion-resistance nature; insoluble to most organic solvent; oil-proof; resistant to strong acid, alkaline and oxidant.
- Excellent insulation with high voltage resistant, stable and generating low losses under high frequency; non-moisture absorbent; high insulating resistance.
- Testing Voltage 2500V, Spark Test 6000V.
- Excellent non-flammable and non-aging nature; oxygen index ≧90.
- Short lines ≧15m to deliver is permitted, but quantity must ≦10% of total delivery quantity.
- Obtained approval from VDE.



Application:
- In electronic and military applications, it can be used as extension cable, conductor for extremely-low temperature environment, high temperature heating coil, fire-resistant wire.
- In electrical appliances industry, it can be installed in air conditioners, micro-wave oven, computerized rice cookers, electronic thermos, electric heater, electric frying pan, lightings as connections etc.



Specifications:
AWG Conductor Overall Dia Average Insulation Thickness mm Min. Insulation Thickness mm  Conductor Max Resist. Package
mm ± 5% 20℃ m/coil
Section mm 2 No. / Dia.   ≦Ω/km
No. / mm
32 0.03 1/0.20 1.13 0.25*2 ≧0.23*2 603
30 0.05 1/0.26 1.2 387
7/0.10 1.23
28 0.08 1/0.32 1.25 244
7/0.12 1.3 2000
26 0.12 1/0.40 1.33 163 ( 610m)
7/0.15 1.38
24 0.2 1/0.52 1.47 95.8
7/0.20 1.55
19/0.12 1.55
22 0.3 1/0.65 1.67 0.30*2 ≧0.25*2 60.7
7/0.25 1.75
19/0.15 1.75
20 0.5 1/0.82 1.86 40.1
7/0.31 2
19/0.185 2
18 0.75 1/1.00 2.03 24.9
7/0.39 2.2
19/0.23 2.2 1000
17 1 1/1.15 2.2 20 (305m)
19/0.26 2.33
16 1.25 1/1.30 2.35 16.2
19/0.30 2.55
15 1.5 1/1.39 2.66 0.35*2 ≧0.30*2 11.9
19/0.32 2.86
14 2 19/0.37 3.15 9.53
13 2.5 19/0.41 3.32 7.41
12 3.3 19/0.48 3.8 0.40*2 5.88
11 4 37/0.375 4.08 4.76
10 5.3 37/0.43 4.48 3.69
