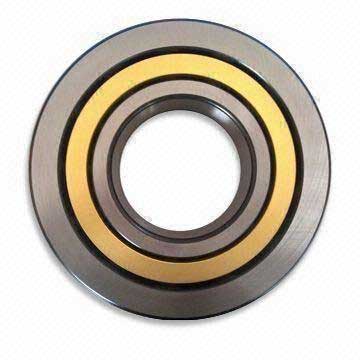

With raceways in the
inner and outer rings
Displaced with respect to each other in the
direction of the bearing axis
Designed to accommodate combined loads
Axial load carrying capacity increases with
increasing contact angle
Contact angle α is defined as the angle between the
line joining the points of contact of the ball and
the raceways in the radial plane, along which the
load is transmitted from one raceway to another and
a line perpendicular to the bearing axis
High precision and long life
High speed and low noise
Specifications:
Material: bearing
steel
Limited speed: 10,000rpm
Size: 100 x 215 x 47mm
