Product
Product   >> Tapered Roller Bearing   >> KMMBG-TRB002
Kianco Bearings Product

Model:

KMMBG-TRB-002

Features:

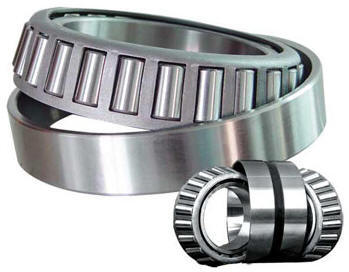

TAPERED ROLLER BEARINGS
(INCH SIZE）

Model

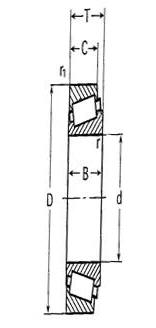

 Dimensions                  Load Ratings Limiting Speed Weight
( inch/mm ) ( kn) ( r.p.m. ) ( kg )

d

D

B

C

T

r-min

r1-min

Dynamic Cr

Static Cor

  Oil

 Grease

     Each
KMMBG-TRB-395A/394A 2.6250 4.3307 0.8660 0.7410 0.8661 0.03 0.05 89.5 120 4300 3200 0.785
66.675 110.000 21.996 18.824 22.000 0.8 1.2
KMMBG-TRB-395S/394A 2.6250 4.3307 0.8660 0.7410 0.8661 0.10 0.04 89.5 120 4300 3200 0.748
66.675 110.000 21.996 18.824 21.999 2.5 1.1
KMMBG-TRB-399A/394A 2.6875 4.3307 0.8660 0.7410 0.8661 0.07 0.04 89.5 120 4300 3200 0.715
68.263 110.000 21.996 18.824 21.999 1.8 1.1
KMMBG-TRB-418/414 1.5000 3.4843 1.1450 0.8750 1.0625 0.14 0.06 95.5 107 6100 4600 0.847
38.100 88.500 29.083 22.225 26.988 3.5 1.5
KMMBG-TRB-444/432 1.5000 3.7500 1.1772 0.8750 1.0938 0.14 0.10 90.0 80.0 5600 4200 0.996
38.100 95.25 29.901 22.225 27.783 3.5 2.5
KMMBG-TRB-462/453X 2.2500 4.1250 1.1542 0.9687 1.1875 0.09 0.13 115 148 4700 3500 1.010
57.150 104.775 29.317 24.605 30.162 2.3 3.3
KMMBG-TRB-462A/453X 2.2500 4.1250 1.1542 0.9687 1.1875 0.09 0.13 115 148 4700 3500 1.010
57.150 104.775 29.317 24.605 30.162 2.3 3.3
KMMBG-TRB-462/453 2.2500 4.2500 1.1542 1.0630 1.0943 0.09 0.03 115 148 4700 3500 1.128
57.150 107.950 29.317 27.000 27.795 2.3 0.8
KMMBG-TRB-482/472 2.7500 4.7244 1.1420 0.9542 1.1730 0.14 0.08 128 177 4000 3000 1.300
69.850 120.000 29.007 24.237 29.795 3.5 2.0
KMMBG-TRB-484/472 2.7559 4.7244 1.1420 0.9542 1.1730 0.08 0.08 128 177 4000 3000 1.300
70.000 120.000 29.007 24.237 29.796 2.0 2.0
KMMBG-TRB-NA484/472D 2.7559 4.7244 1.4413 2.1250 2.5626 0.14 0.03 128 177 4000 3000 2.760
70.000 120.000 32.609 53.975 65.090 3.5 0.8
KMMBG-TRB-498/493 3.3125 5.3750 1.1720 0.8750 1.1875 0.10 0.09 129 189 3500 2600 1.590
84.138 136.525 29.769 22.225 30.163 2.5 2.3
KMMBG-TRB-527/522 1.7500 4.0000 1.4200 1.0625 1.3750 0.10 0.09 135 165 5000 3800 1.370
44.450 101.600 36.068 26.988 34.925 2.5 2.3
KMMBG-TRB-528X/520X 1.9685 3,9370 1.4173 1.0625 1.3750 0.10 0.09 120.5 103.9 5000 3800 1.200
50.000 100.000 35.999 26.988 34.925 2.5 2.3
KMMBG-TRB-529/522 2.0000 4.0000 1.4200 1.0625 1.3750 0.03 0.13 135 165 5000 3800 1.230
50.800 101.600 36.068 26.988 34.925 0.8 3.3
KMMBG-TRB-529X/522 2.0000 4.0000 1.4200 1.0625 1.3750 0.14 0.13 135 165 5000 3800 1.227
50.800 101.600 36.068 26.988 34.925 3.5 3.3
KMMBG-TRB-535/532A 1.7500 4.3750 1.4550 1.1875 1.5000 0.14 0.13 129 144 4800 3600 1.790
44.450 111.125 36.957 30.162 38.100 3.5 3.3
KMMBG-TRB-539/532A 2.1250 4.3750 1.4550 1.1875 1.5000 0.10 0.09 141 177 4800 3600 1.580
53.975 111.125 36.957 30.162 38.100 2.5 2.3
KMMBG-TRB-539/532 2.1250 4.3750 1.4550 1.3125 1.5000 0.14 0.13 141 177 4800 3600 1.660
53.975 111.125 36.957 33.338 38.100 3.5 3.3
