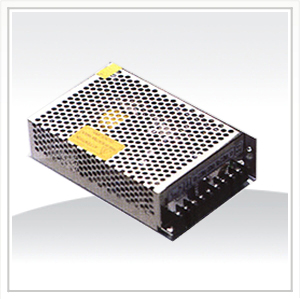

Triple Output Switching Power Supply
KSKK-T
|
|
●Light weight and compact size |
|
●100% full load burn-in test |
|
●Surge protection by using soft start
electrical design |
|
●Wide input voltage range |
|
●Short-circuit, over-load, over-voltage
protection |
|
●High reliability, high efficiency, low
operating temperature, long life
|
|
A
|
B
|
C
|
D
|
|
D
Series
|
+5V，+12V
|
+5V，-24V
|
±5V，±15V
|
|
|
T
Series
|
±5V+12V
|
+5V，12V
|
+5V，±12V
|
+5V，+12V，+24V
|
|
Q
Series
|
±5V，12V
|
|
|
+5V，±12V，+24V
|
|
Note 1: 85-132/170-264V
AC select A: Automatic transfer
F: Full range |
|
S: Selected by switch
J: Selected by jumper wire X:
Fixed |
|
Note 2: Function A: Over
load (over current), short-circuit protection |
|
B: Over voltage protection C:
Over
heat protection |
|
D:
Cooling
automatic by fan
switch (to extend long life) |
|
E:
Power
monitor signal F: Output external connection with TTL signal control
|
|
G: Multiple-series connection
H: Series connection |
|
I:
Charging protection
J: Output voltage remote measurement |
|
K: Output in LED display |
|
|
 |
