Kianco FEP insulated Silicone Rubber Wire
Product |
|
|
|
|
|
| |
Flexible Core FEP Teflon
Insulated Silicone Rubber Jacket Wire
|
|
| Code: KMEWR-SRJ-FS-201, FS-301, FS-401,
FS-501 |
| Name: Flexible Core FEP Teflon
Insulated Silicone Rubber Jacket Wire |
| Details |
Properties:
- Rated Temperature: 150℃.
- Rated Voltage 300/500V.

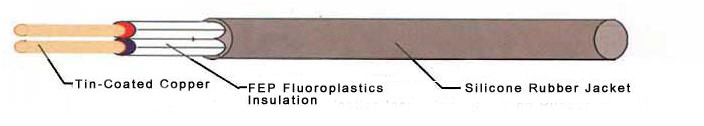

- FS-201/301/401/501: 2-cores/3-cores/4-cores/5-cores FEP Insulated
Conductors with Silicone Rubber Jacket outside.
- Colors: white, black, red, blue, grey, yellow, green, brown,
orange, transparent etc. |
| Specifications: |
|
AWG |
Conductor |
Cable Overall Dia mmą5% |
Average Insulation Thickness mm |
Average Jacket Thickness mm |
20℃ Tin-coated Copper Resistance ≦Ω/km |
Package |
|
Section mm 2 |
No. / Dia. |
FS-201 |
FS-301 |
FS-401 |
FS-501 |
(m/coil) |
|
No. / mm |
2 Cores |
3 Cores |
4 Cores |
5 Cores |
|
|
26 |
0.12 |
1/0.40 |
3.4 |
3.4 |
3.7 |
4.1 |
≧0.30 |
≧0.60 |
16.3 |
100 |
|
7/0.15 |
|
24 |
0.2 |
1/0.52 |
3.7 |
3.7 |
4.1 |
4.8 |
95.8 |
|
7/0.20 |
|
22 |
0.3 |
1/0.65 |
4.1 |
4.1 |
4.8 |
5.9 |
60.7 |
|
7/0.25 |
|
19/0.15 |
|
20 |
0.5 |
1/0.82 |
4.5 |
4.5 |
5.3 |
6.1 |
40.1 |
|
7/0.31 |
|
19/0.185 |
|
18 |
0.75 |
1/1.00 |
5 |
5 |
5.9 |
6.9 |
24.9 |
|
7/0.39 |
|
19/0.23 |
|
17 |
1 |
1/1.15 |
5.5 |
5.5 |
6.5 |
7.5 |
≧0.80 |
20 |
|
19/0.26 |
|
16 |
1.25 |
1/1.30 |
6.1 |
6.1 |
7.2 |
8.2 |
16.2 |
|
19/0.30 |
|
15 |
1.5 |
1/1.39 |
6.3 |
6.3 |
7.5 |
8.7 |
12.2 |
|
19/0.32 |
|
14 |
2 |
19/0.375 |
6.9 |
6.9 |
8.2 |
9.5 |
9.53 |
|
13 |
2.5 |
19/0.40 |
7.2 |
7.2 |
8.7 |
10 |
8.21 |
|
|
|
|
|
|
|
|
|
|
|
|
